5000:1 高對比度
采用優質黑(hei)色LED燈搭配黑(hei)色面(mian)罩(zhao)，對(dui)比度(du)高達5000:1，使畫面(mian)更加細膩、清晰、鮮艷
高灰階、高刷新率
高灰階，色彩細節完美呈現(xian)，高刷新(xin)，有效消除摩爾紋

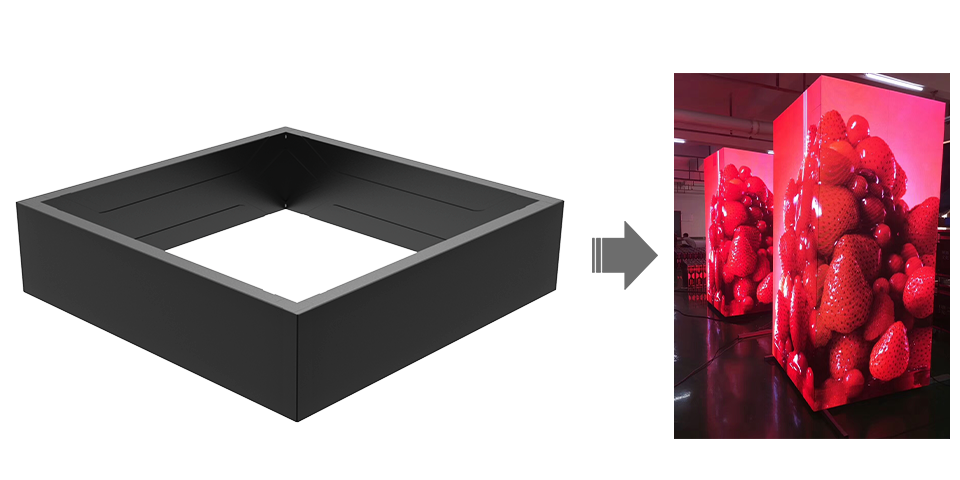

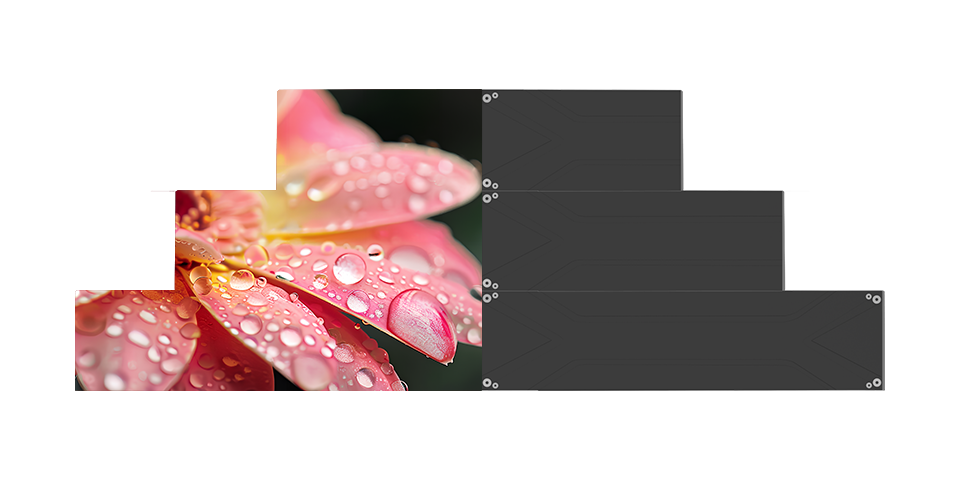

創意安裝
超輕(qing)超薄，厚度(du)僅42mm，可輕(qing)松進行角(jiao)度(du)拼接，輕(qing)松拼裝矩形或其他形狀

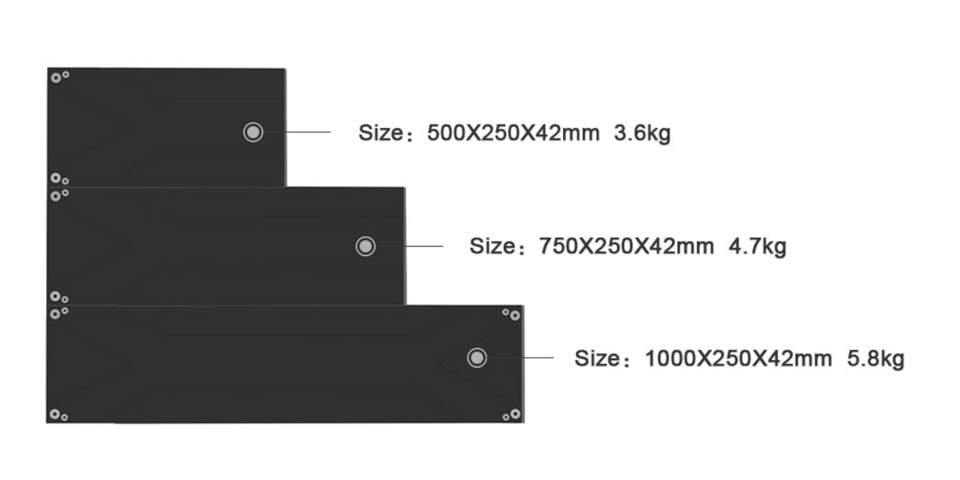

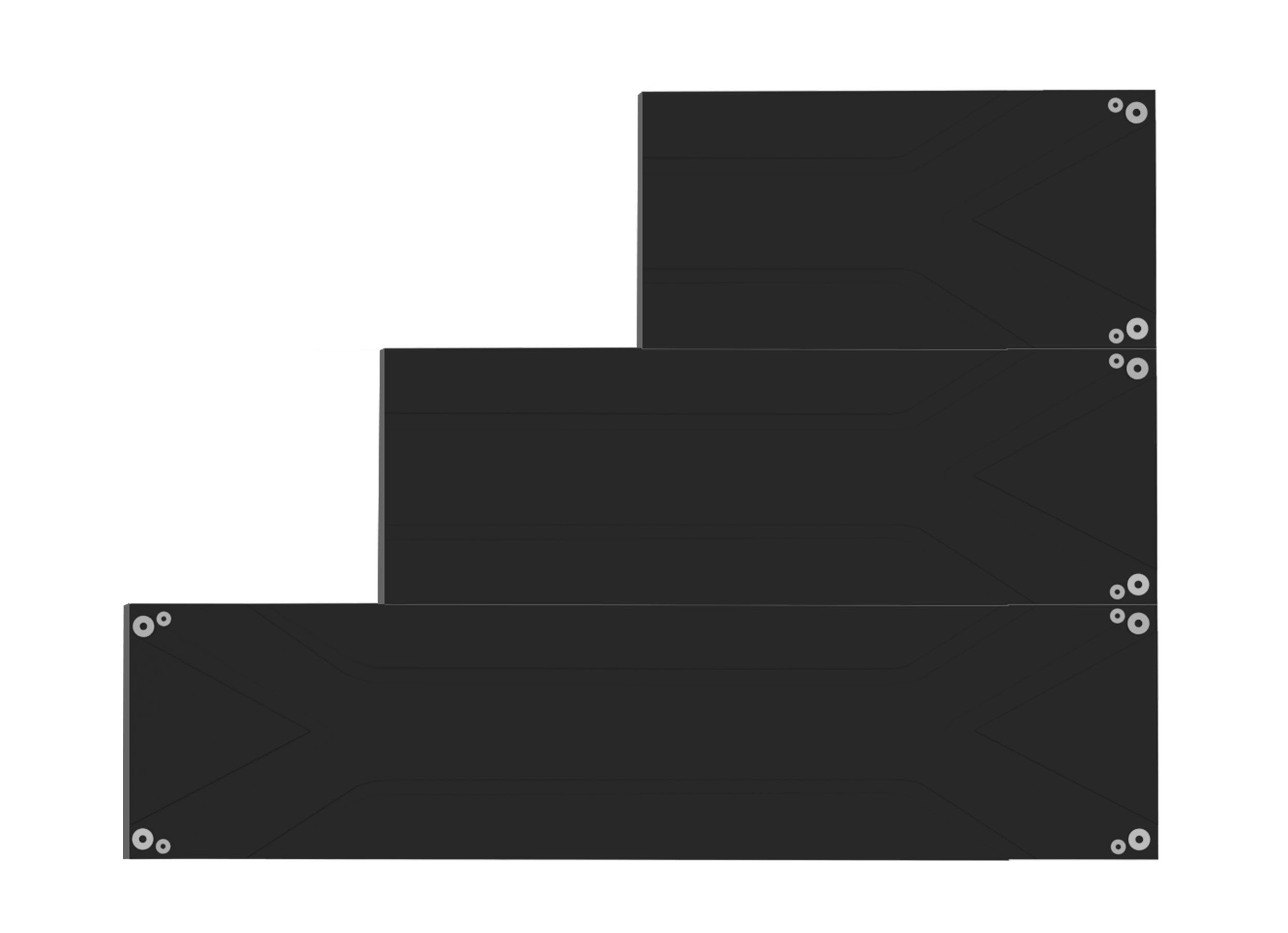

提供不同尺寸的箱體
250*500mm /250*750mm /250*1000mm 或定制尺寸，不(bu)同(tong)尺寸箱體滿足(zu)不(bu)同(tong)應用(yong)場景(jing)的需求

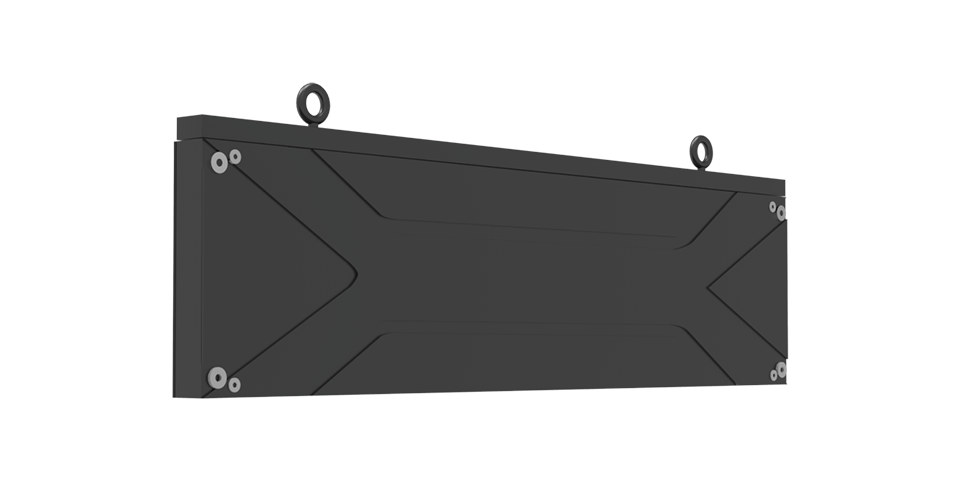

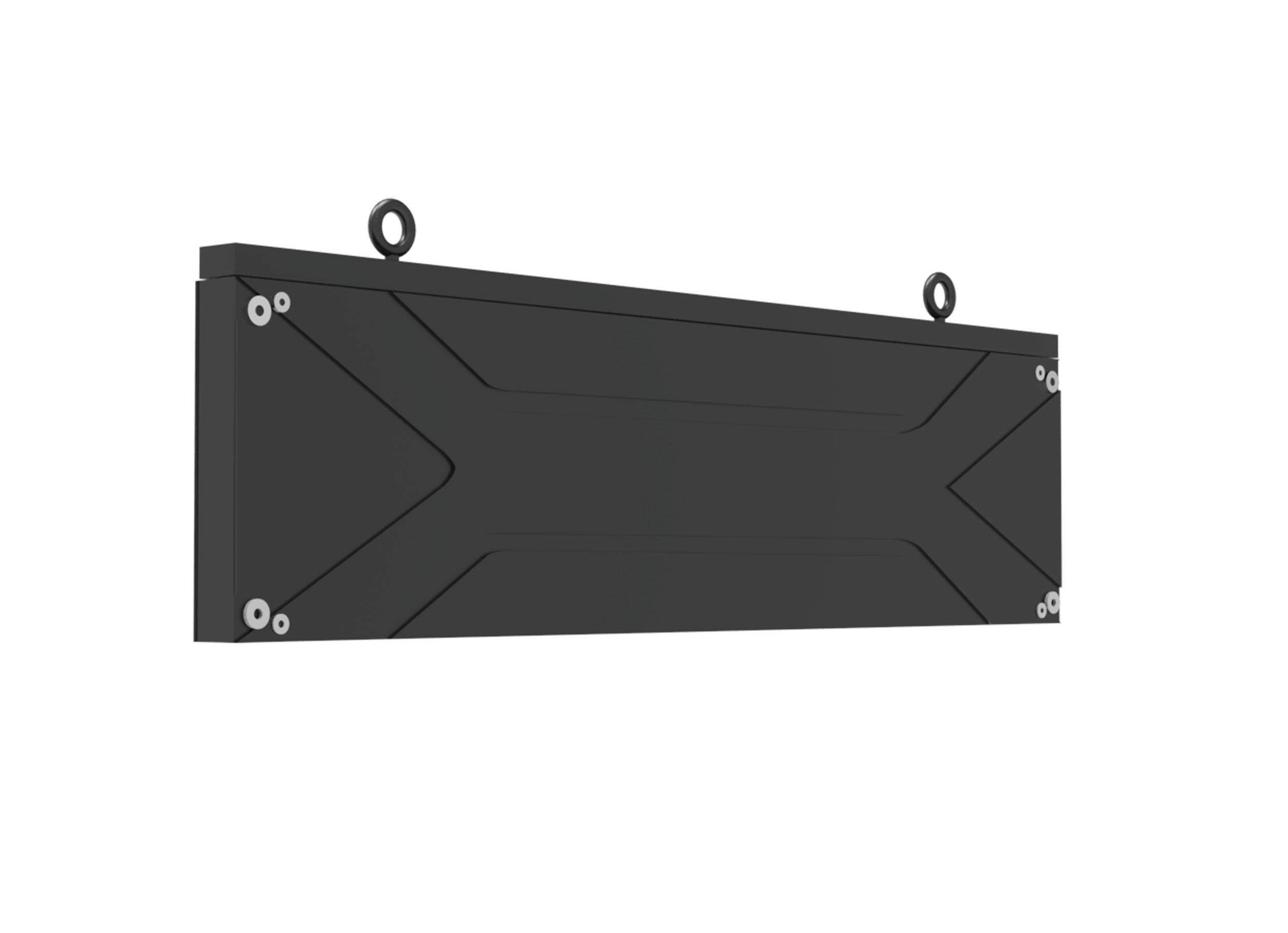

懸掛安裝
支持多種安裝方(fang)式(shi)，壓鑄鋁結構(gou)，堅固(gu)耐用重量(liang)輕，安裝更簡(jian)單，且不易變形
UT series - Indoor Front Service
Pixel Pitch(mm) P1.953 P2.604 (With Mask) P2.976 (With Mask) P3.91 (With Mask) P4.81 (With Mask) Module Size(mm) 250*250mm Cabinet Size(mm) 1000*250/ 750*250/ 500*250 Brightness(cd/㎡) 600cd 800cd 1000cd 800cd 800cd LED Lamp 1515/1415 1515/1415 1515/1415 2121/2020 2121/2020 Module Resolution(dots) 128*128 96*96 84*84 64*64 52*52 Viewing Distance(m) ≧2.5m ≧2.5m ≧2.9m ≧3.9m ≧4.8m Scan 1/32 scan 1/32 scan 1/28 scan 1/16 scan 1/13 scan LED Driving Method Constant Current Module Maximum Power(W) 35 28 Max.Power Consumption(W/㎡) 600 500 Average Power Consumption(W/㎡) 210 180 Power distribution(W/㎡) 740W Product Thickness 60mm(With bottom shell and cabinet) Product Weight(KG/Cabinet) 6.5KG/250*1000mm cabinet Right Angle Cabinet Support 90° angle Operating Input Voltage(V) 4.6-5V Gray Scale 13bits Brightness Adjustment 256 Brightness Levels Refresh Rate 1920/3840 Refresh Frame Frenquncy 60HZ Cabinet Material Die-casting Aluminum Cabinet Maintenance 100% Front Ingress Protection IP40 Continuous Use Time >72h Life Span 100,000h MTBF >10,000h Blind Spot Rate <0.01% Operating Temperature -20℃～+50℃(Below -20 degrees could be customized) Operating Humidity Indoor 10%～60%
固裝
首頁固裝
UT系列
戶內前維護
尺寸:250*500mm/250*750mm/250*1000mm
像素間距(ju):P1.95/P2.6/P2.97/P3.91/P4.81
超輕超薄
前維護，維護方便
無縫拼(pin)接，室內SMD的完美選擇
應用：商場、電影院、辦公空間(jian)
